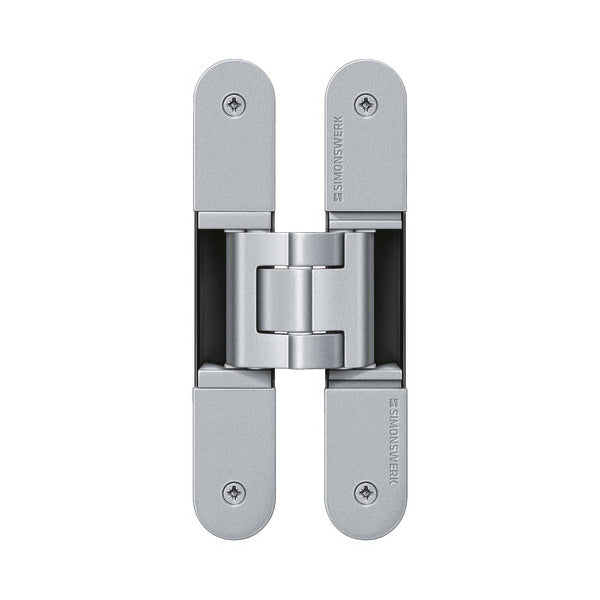

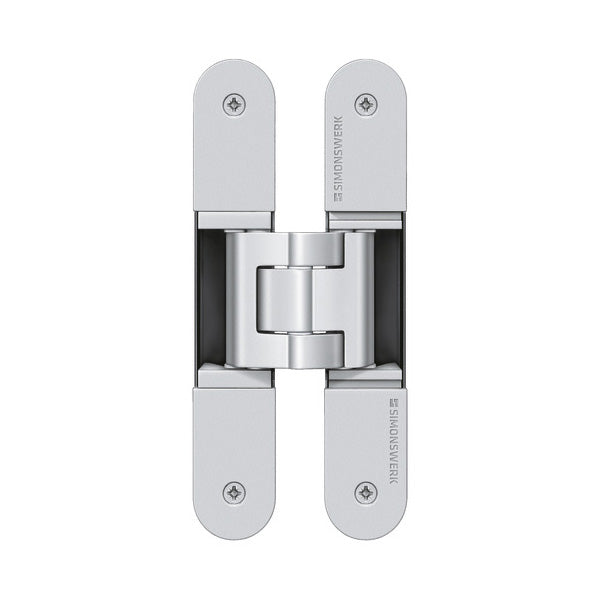

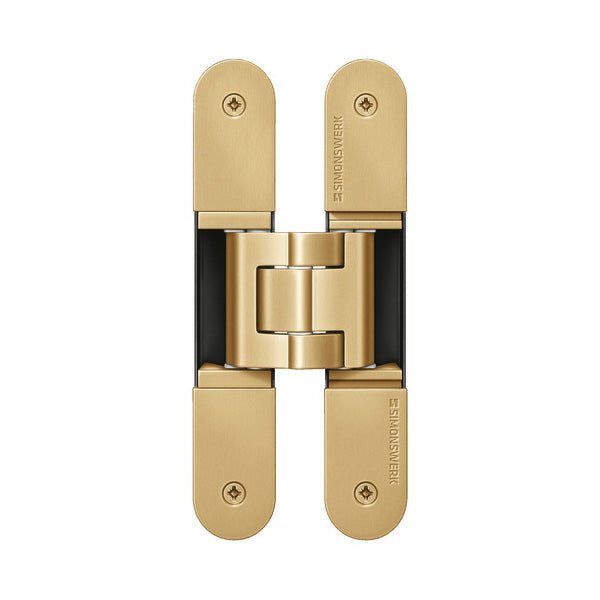

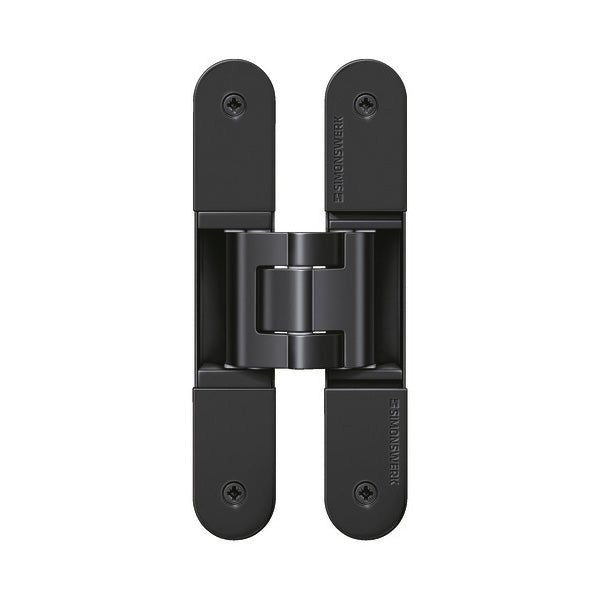

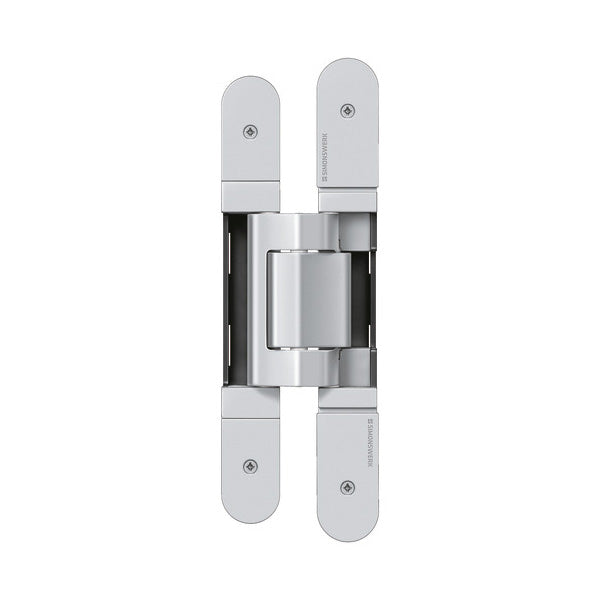

TE 645 3D
SKU:
5 400634 0 12402
$572.00
Unit price
/
Unavailable
PRODUCT FEATURES
- Completely concealed hinge system
- For wood, steel, or aluminum door panels and frames
- For flush high-performance commercial doors
- Finger protection due to a small gap between door and frame
- Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
- Maintenance-free slide bearings
TE 645 3D - Satin Chrome Look (F1) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Technical Specifications
Technical Specifications
Load capacity: 300.0 kg (661.0 lbs.)
Overall length: 34.0 mm (1.339)
Style: Satin Chrome Look (F1)
Type of door leaf: wood, hollow metal
Width door part : 260.0 mm (10.236)
TE 645 3D
