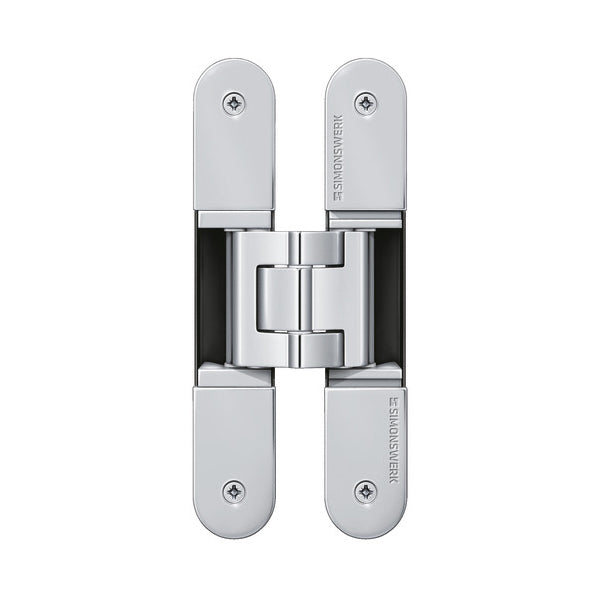

TE 526 3D Energy
SKU:
5 400665 0 04001
$636.00
Unit price
/
Unavailable
PRODUCT FEATURES
- Multiple connection adapter options
- Solid non-magnetic stainless steel (304 series) (marine grade 316 series upon request)
- Completely concealed hinge system
- For wood, steel, or aluminum door panels and frames
- Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
- Maintenance-free slide bearings
- UL listed for 180-minute fire door
TE 526 3D Energy - Satin Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Technical Specifications
Technical Specifications
Brand: Tectus
Load capacity: 120.0 kg (264.0 lbs.)
Overall length: 155.0 mm (6.102)
Style: Satin Chrome Look (F1)
Type of door leaf: wood, hollow metal
Width door part : 26.0 mm (1.024)
